CIS line scan camera highly integrates image sensors, light sources, lenses, and processing circuits, providing excellent stability and vibration resistance, and is suitable for narrow installation spaces. Its imaging principle is to acquire 1:1 images, thus avoiding deficiencies such as edge blurring and image distortion. This can greatly improve the efficiency of installation, debugging, and maintenance, saving costs for customers. WHEC CoaXPress CIS is now widely used in machine vision fields, such as Web inspection, Battery inspection, Printing inspection, etc.
Distortion-free imaging : 1:1 image
Wide angle seamless imaging : min 18mm-max 6000mm
Fast scanning speed : max 139kHz@600dpi; max 87kHz@1200dpi
High resolution : max 1200dpi
Working distance : min 0.9mm-max 29.3mm (optional)

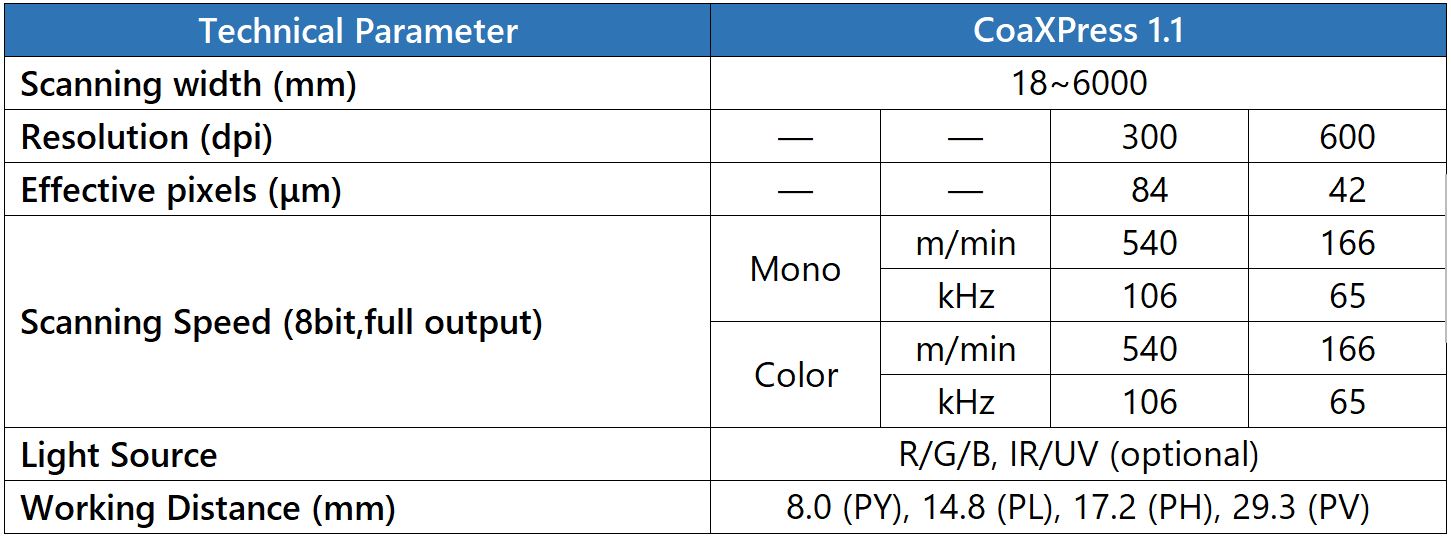

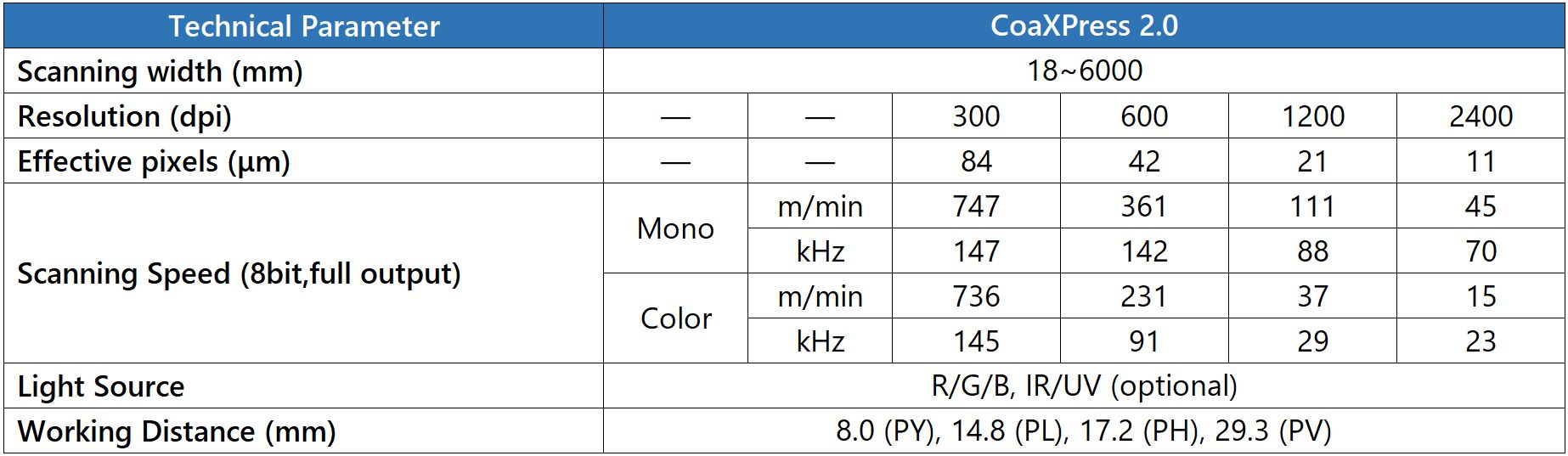

Interfaces : CXP1.1/CXP2.0 (optional)
For further details or questions regarding product characteristics, please call or send us an inquiry.
You are more than welcome to ask for samples! Feel free to ask about requests for samples or if there are any other questions.
